Nomad
5" long-range FPV — open-source frame files
PCTG 3D-printed frame, 2204 motors, ELRS 2.4, Flywoo GPS. Digital FPV with DJI O4 Air Unit (not the Pro). 555g AUW, 20–30+ minute flights.
Buy a Nomad
| Includes | Frame | Electronics | Full | Ultimate |
|---|---|---|---|---|
| Frame | ✓ | — | ✓ | ✓ |
| Electronics (incl. GPS) | — | ✓ | ✓ | ✓ |
| Auline pack | — | — | 1× | 4× |
| O4 Air Unit | — | — | — | ✓ |
Add-ons
Optional — stack with your kit.

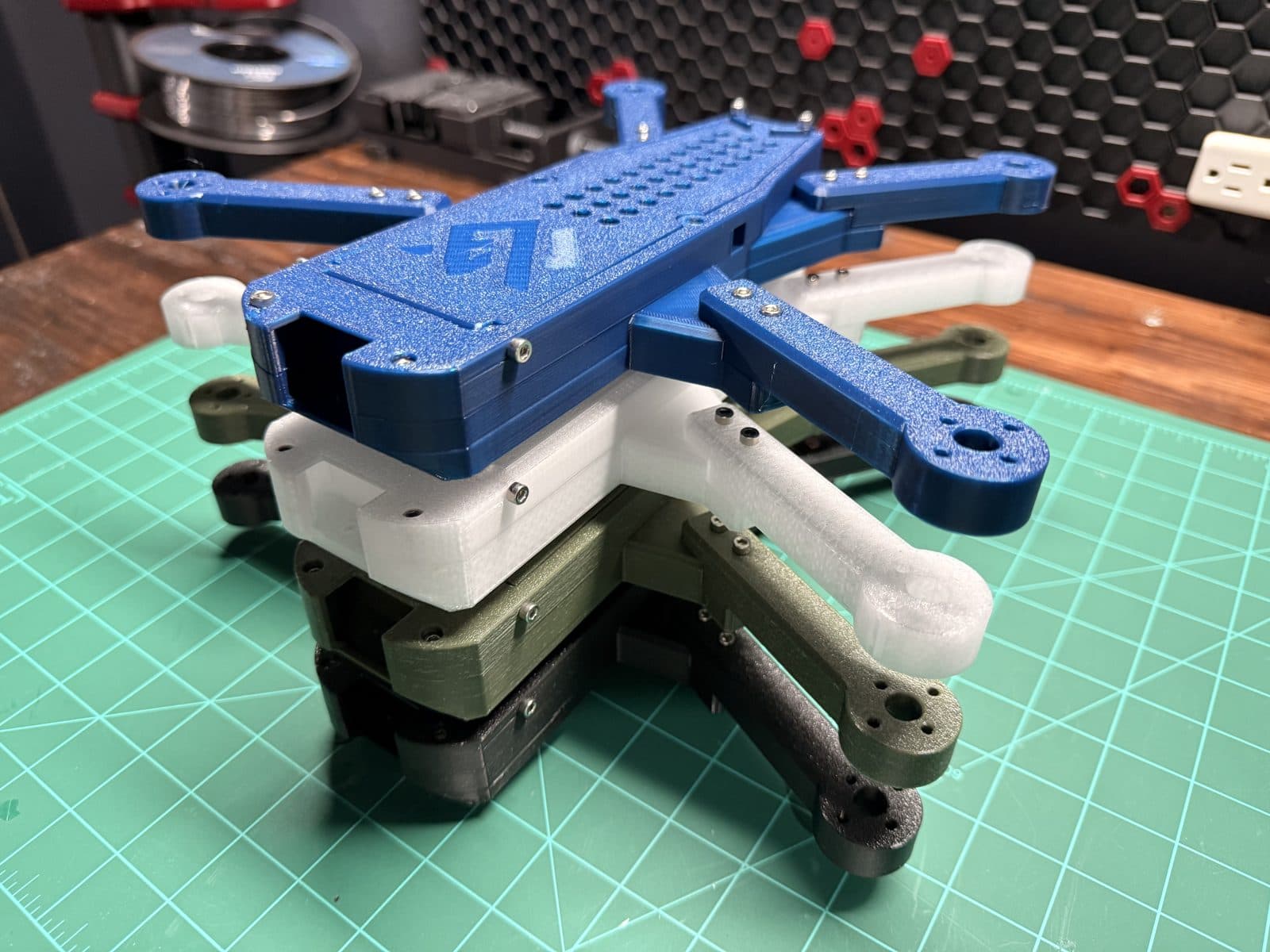

Frame color
Built for the Mission

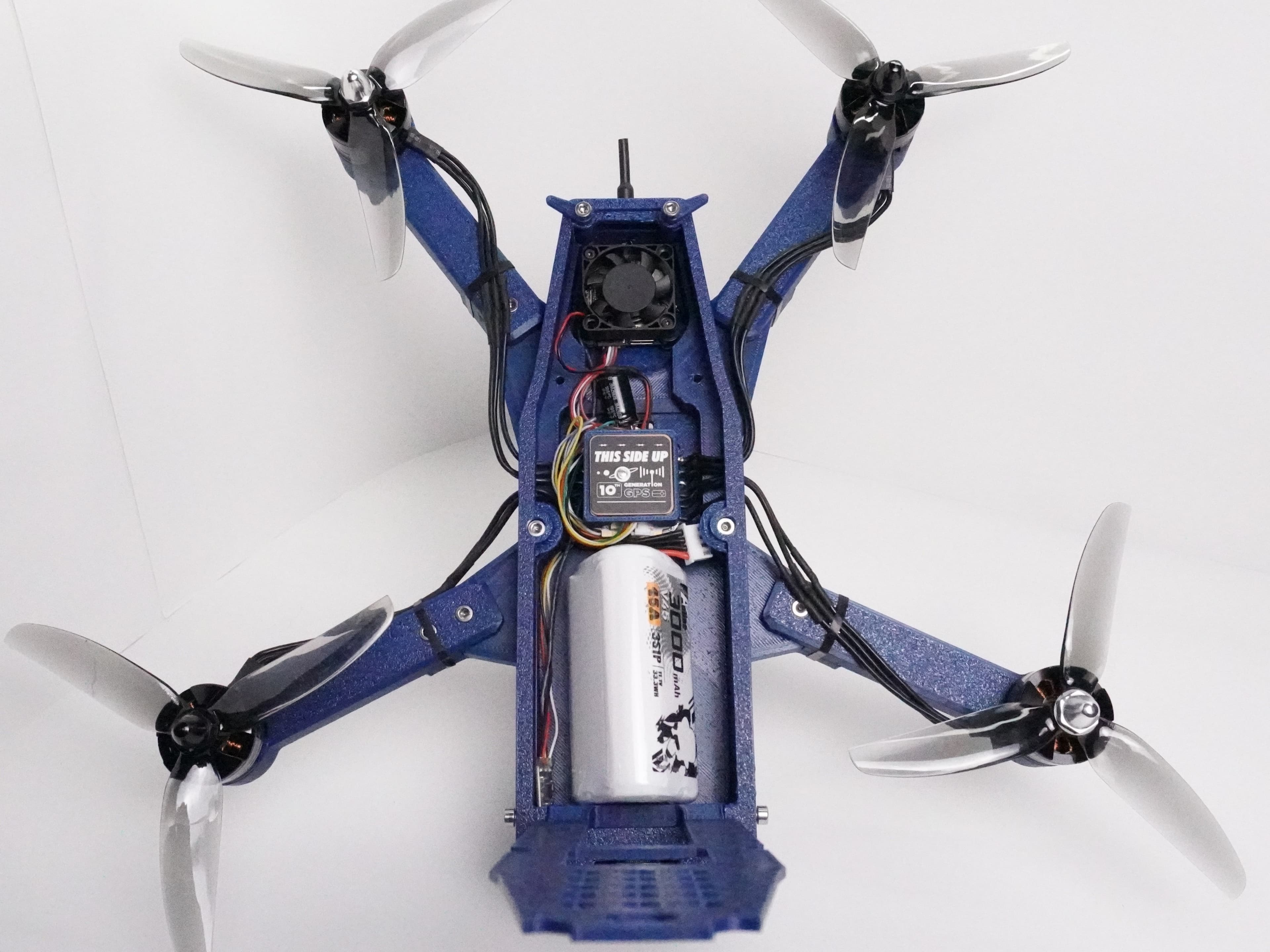

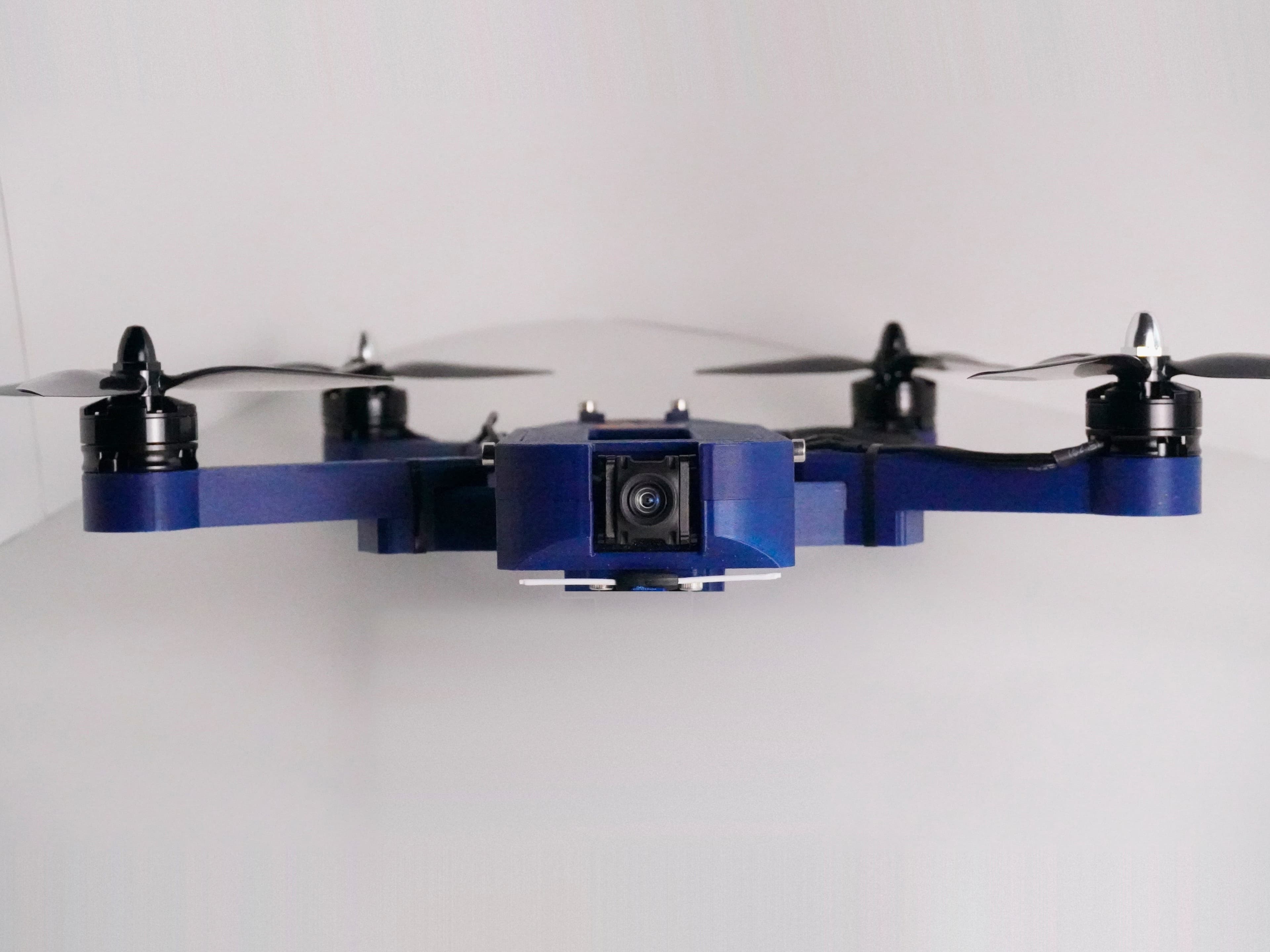

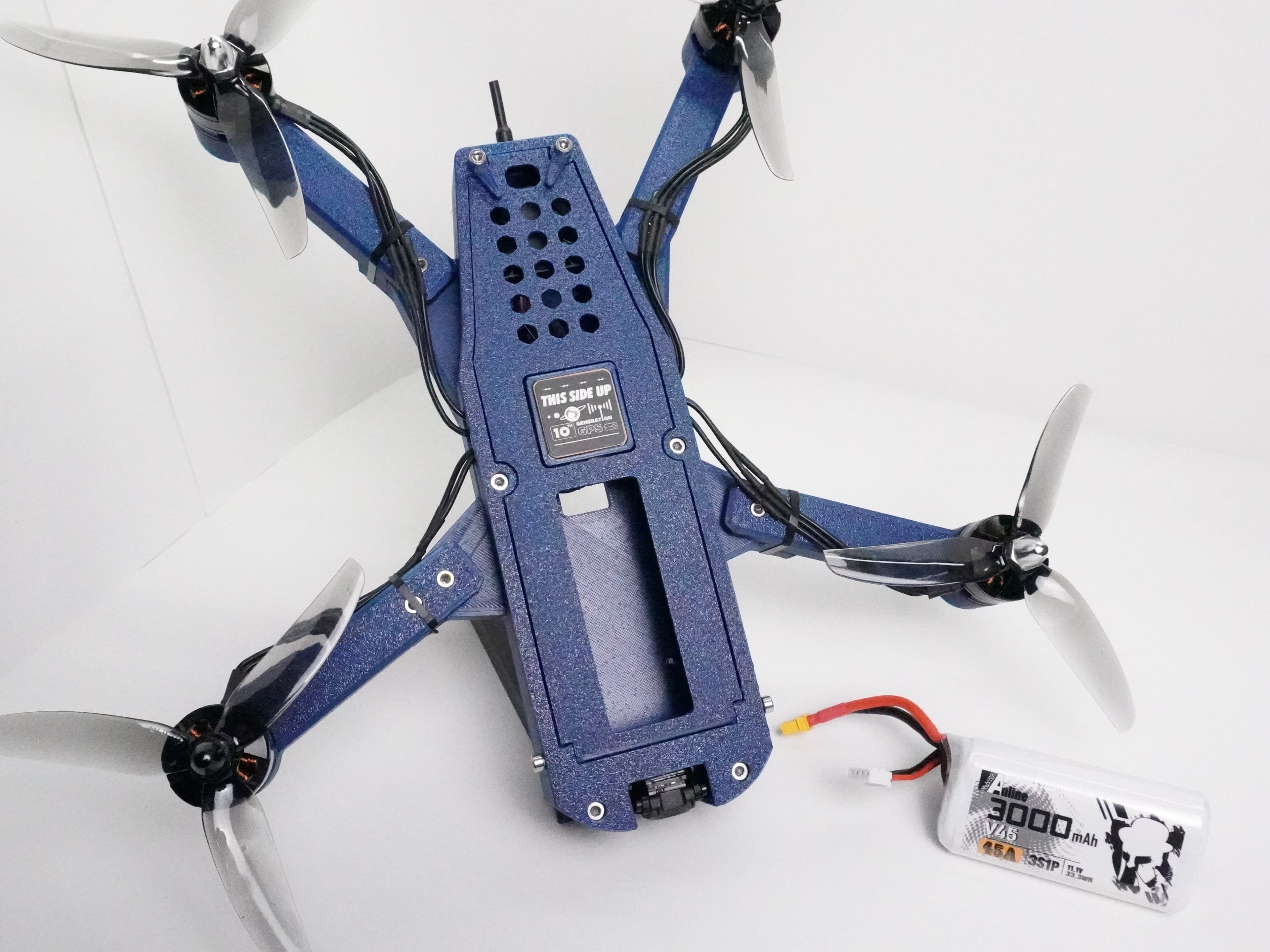

The ADAMAAS Nomad is a 5-inch long-range FPV quad built around a lightweight custom PCTG frame, efficient 2204 motors on 5x3 props, Flywoo GPS/compass, ExpressLRS 2.4GHz, and a 3S Li-ion pack. Digital FPV uses the DJI O4 Air Unit (not the Pro) — not analog. 555g all-up weight (395g dry + 160g Auline V45). 20–30+ minute flight time. Frame is PCTG 3D printed, not carbon. Free print and CAD files (3mf + two STEPs): https://github.com/nickadamaas/adamaas-nomad - 3mf: https://github.com/nickadamaas/adamaas-nomad/raw/main/adamaas-nomad.3mf - Full airframe STEP: https://github.com/nickadamaas/adamaas-nomad/raw/main/adamaas-nomad.step - Stand STEP: https://github.com/nickadamaas/adamaas-nomad/raw/main/adamaas-nomad-stand.step
Technical Specifications
| Frame Size / Type | ADAMAAS Nomad 5" long-range — PCTG 3D printed (not carbon) |
| Material | PCTG — tougher and more impact-resistant than PETG |
| Dry Weight | 395g (without battery) |
| Battery Weight | 160g (Auline V45) |
| All-Up Weight (AUW) | 555g (395g dry + 160g Auline V45) |
| Flight Time | 20–30+ minutes |
| Motors | Feichao 2204 2300KV (x4) on 5x3 three-blade props |
| Flight Controller Stack | Flywoo GOKU F722 Pro Mini V2 (F7 FC + 45A AM32 4-in-1 ESC), 20x20mm |
| Video System | DJI O4 Air Unit (not the Pro) — digital FPV, not analog |
| Control Link | BETAFPV ELRS 2.4GHz Nano Receiver (ExpressLRS) |

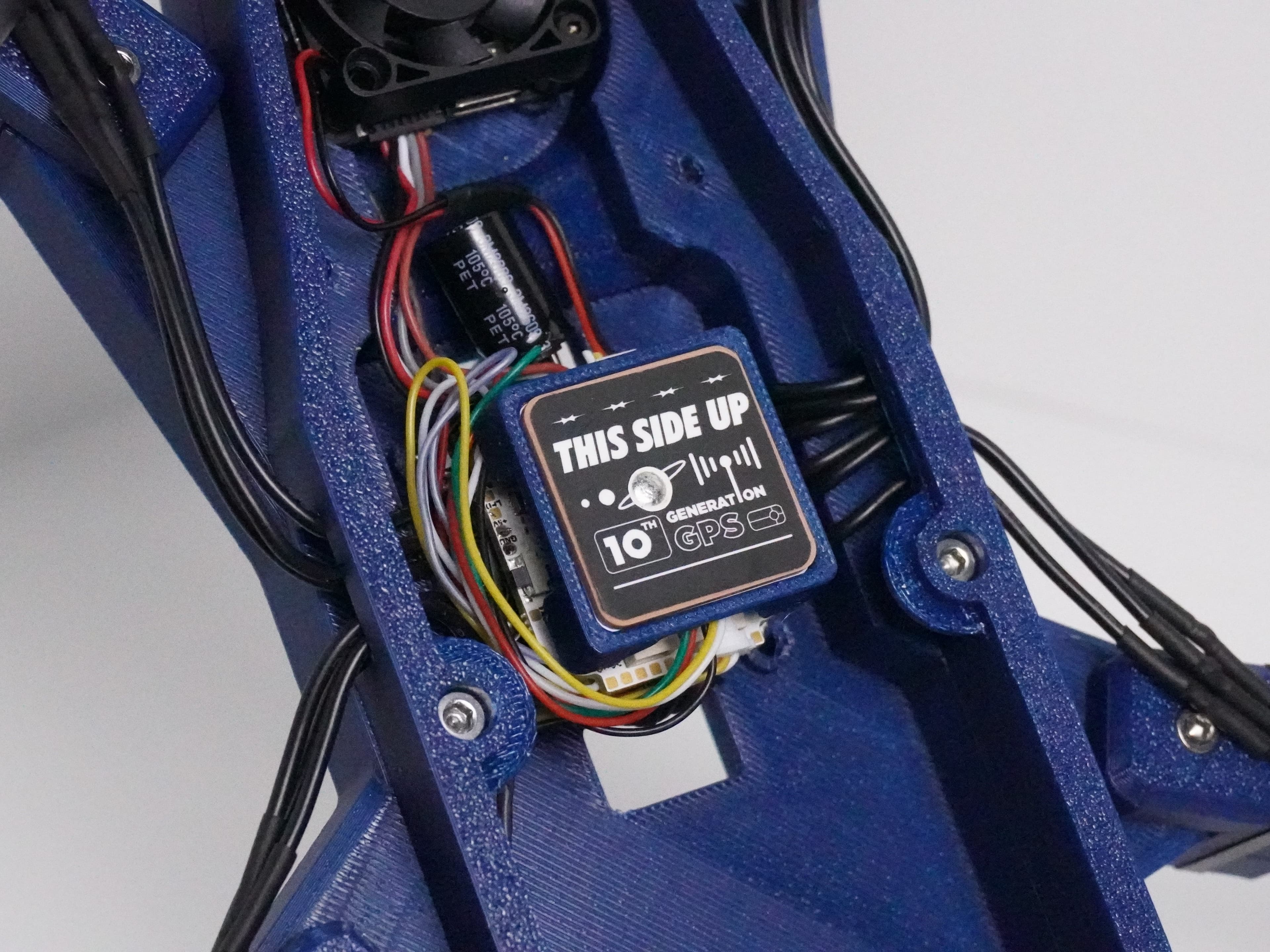

| GPS | Flywoo GOKU GM10 Pro V3 GPS with compass |
| Recommended Battery | Auline V45 3S 3000mAh Li-ion (XT30) |
Use Cases
Efficient, low-noise flights for long airtime
Smooth footage with DJI O4 Air Unit (not analog)
Free 3mf and STEP files to print and customize
Stable, quiet platform for extended aerial work
